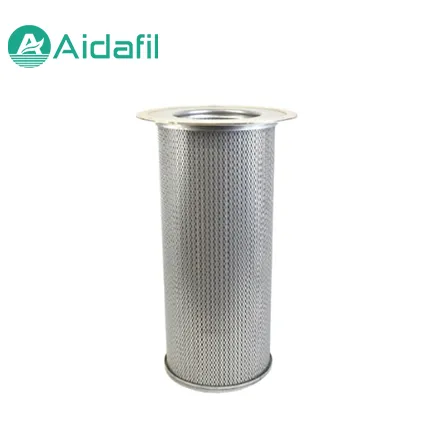

250034-085
Air Compressor Filter Elements replacement element
Air Compressor Filter Elements
250034-085 is the official part number for an Air/Oil Separator Element used on rotary screw air compressors. Its main function is to filter and separate lubricating oil mist and aerosols from…
Supply TypeIndependent aftermarket replacement
AvailabilityAvailable
Lead Time2–3 business days
Cross Reference02250048-734OEM or cross-reference number
Reference price · tax included
Request quotation
Orders are confirmed by our team for price, compatibility and delivery.
Flexible DeliveryService Point Pickup
Verified specifications for confident selection.
Confirm installation requirements against the equipment manual or original documentation.
| OEM / Cross Reference | 02250048-734,249494,409267 |
|---|---|
| Outer Diameter (D1) | 270 mm |
| Height / Length (L) | 614 mm |
| Weight | 10.9 kg |
| Filtration precision | 2 μm |
Dimensions are indicative, not an engineering drawing.
Installation Notes
Stop the system and release pressure before removal. Confirm flow direction and sealing surfaces before installation.
Maintenance & Replacement
Maintenance and Fault Warning • Rated service life: Generally 8,000 hours or 1 year under standard operating conditions. If the environment is dusty or the temperature remains excessively high for a long time, cleaning or replacement shall be performed in advance. • Blockage Troubleshooting Guidelines: .When the air compressor control panel indicates excessive oil separator pressure difference (typically exceeding 0.08 - 0.1 MPa), or if there is a marked increase in oil content in the downstream exhaust gas and abnormal rise in oil consumption, the filter element needs to be replaced immediately.
Before Ordering
Confirm medium, flow rate, pressure, temperature, connection and available installation space.
Cross Reference
Reference information associated with this product. Contact us if you need help confirming a cross-reference number.
Reference 02Sullair249494OEM / Cross Reference
Reference 03Sullair409267OEM / Cross Reference
Delivery Options
Shipping or service point pickup. Our team confirms the best arrangement based on destination, weight and lead time.
Confirmed Before Dispatch
After inquiry, we verify specifications, price and supply status before delivery.
Ongoing Support
For specification, installation or quality questions, keep the product and order information available when contacting us.
INQUIRYSend an inquiry for this product
Send your requirements for 250034-085 and our selection team will confirm compatibility, price and lead time.
Frequently Asked Questions
How do I confirm compatibility without a third-party brand reference?
Provide the product number, dimensions, connection details, operating conditions and equipment information. Our team will confirm the application.
Which dimensions should I measure?
Measure the overall height, outer diameter, inner diameter and thread or connection size. A photo or drawing helps confirm the replacement.
How do I choose the correct seal material?
Seal selection depends on the filtration media, operating temperature and chemical compatibility. We can confirm suitable options for your application.
Can you provide a product data sheet?
Yes. Send the product number and required specifications and we will provide the available data sheet and selection support.
