250034-126

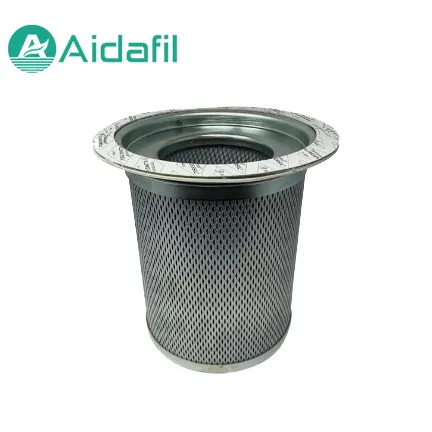

Air Compressor Filter Elements replacement element
Air Compressor Filter Elements
250034-126 is the core original equipment part number used for industrial air compressors, which specifically corresponds to a high-performance Air/Oil Separator. Its main function is to…
Supply TypeIndependent aftermarket replacement
AvailabilityAvailable
Lead Time2–3 business days
Cross ReferenceZX-250034-126OEM or cross-reference number
Reference price · tax included
Request quotation
Orders are confirmed by our team for price, compatibility and delivery.
Flexible DeliveryService Point Pickup
Verified specifications for confident selection.
Confirm installation requirements against the equipment manual or original documentation.
| OEM / Cross Reference | ZX-250034-126,KV3000-005P,OT 2092 |
|---|---|
| Filtration precision | 0.1um |
| Height | 920.75 mm |
| Outer Diameter | 482.6 mm |
| Flange OD | 590.55 mm |
| Weight | 47.17 kg |
| Initial Pressure Drop | ≤ 0.02 Mpa |
Dimensions are indicative, not an engineering drawing.
250034-126 is the core original equipment part number used for industrial air compressors, which specifically corresponds to a high-performance Air/Oil Separator. Its main function is to efficiently separate and recover lubricating oil from the compressed air before it is discharged, so as to ensure the cleanliness of the output gas and reduce the oil consumption of the system.
Core Values and Functions
During the operation of the screw air compressor, lubricating oil mixes with high-temperature and high-pressure gas to form extremely fine oil mist. The core mission of 250034-126 is to block oil mist from being discharged along with the gas:
• Ensure clean compressed air: Reduce the residual oil content in discharged gas to an extremely low level of 2-3 ppm, preventing oil contamination of downstream precision pneumatic equipment, pneumatic pipelines and finished products.
• Greatly cut operating costs: Its ultra-high recovery efficiency prevents frequent loss of lubricating oil, thus lowering regular refilling and maintenance costs for the compressor lubricant.
• Maintain high unit efficiency: Extremely low initial resistance reduces backpressure loss of the air compressor, helping the whole unit stay within the optimal energy efficiency range and achieve energy conservation and emission reduction.
Process Highlights and Safety Structure
• High-end Imported Filter Media: The interior adopts the world-leading multi-layer coalescence composite technology with superfine glass fiber. The filter media is evenly distributed with a large filtration area, featuring excellent high-temperature resistance and acid-alkali corrosion resistance.
• Reinforced Frame Structure: The outer layer uses thickened anti-corrosion galvanized perforated steel plate, which boasts extremely high mechanical strength. It can withstand high airflow impact and instantaneous differential pressure up to 70 psi without collapsing or deforming.
• Dual Anti-static Design: Unique metal conductive static pins (ground wires) are embedded in all filter element sealing gaskets. In a long-term high-flow gas friction environment, accumulated static electricity can be discharged in a timely manner, completely eliminating the risk of internal tank deflagration accidents caused by static sparks.
Installation Notes
1.It is strictly forbidden to damage the static needle (the most critical safety wire) 2.Thoroughly clean the flange sealing surface 3.Precisely adjust the length of the oil return pipe 4.Tighten flange bolts diagonally in stages 5.Check mating parts and lubricating oil (address both symptoms and root causes) 6.First power-on inspection and jogging
Maintenance & Replacement
Replace according to pressure drop or the maintenance schedule. Inspect for leakage and seal damage.
Before Ordering
Confirm medium, flow rate, pressure, temperature, connection and available installation space.
Cross Reference
Reference information associated with this product. Contact us if you need help confirming a cross-reference number.
Reference 01SullairZX-250034-126OEM / Cross Reference
Reference 02SullairKV3000-005POEM / Cross Reference
Reference 03SullairOT 2092OEM / Cross Reference
Delivery Options
Shipping or service point pickup. Our team confirms the best arrangement based on destination, weight and lead time.
Confirmed Before Dispatch
After inquiry, we verify specifications, price and supply status before delivery.
Ongoing Support
For specification, installation or quality questions, keep the product and order information available when contacting us.
INQUIRYSend an inquiry for this product
Send your requirements for 250034-126 and our selection team will confirm compatibility, price and lead time.
Frequently Asked Questions
How do I confirm compatibility without a third-party brand reference?
Provide the product number, dimensions, connection details, operating conditions and equipment information. Our team will confirm the application.
Which dimensions should I measure?
Measure the overall height, outer diameter, inner diameter and thread or connection size. A photo or drawing helps confirm the replacement.
How do I choose the correct seal material?
Seal selection depends on the filtration media, operating temperature and chemical compatibility. We can confirm suitable options for your application.
Can you provide a product data sheet?
Yes. Send the product number and required specifications and we will provide the available data sheet and selection support.
