Wedge Wire vs Sintered Mesh Filter

Compare wedge wire and sintered mesh filters by particle retention, strength, cleaning, pressure drop and process conditions.

Introduction

Wedge wire and sintered mesh are both metal filter constructions, but they behave differently in service. One uses a profiled wire wound or welded into a slotted screen. The other uses bonded metal mesh or metal fiber layers to create a porous filtration structure.

The choice between them should not be based on the material alone. It depends on the particle size to be removed, the pressure differential, the cleaning method, the fluid, the temperature, and the mechanical loads on the element.

This guide compares the two constructions and provides a practical selection process for industrial filtration applications. It is intended as an initial technical overview; the final specification should be confirmed with the filter supplier and the equipment requirements.

How Wedge Wire Filters Are Constructed

A wedge wire filter uses profiled wires arranged around supporting rods or a frame. The wire profile creates a continuous slot with a relatively open flow path. The slot width is a key specification because it controls the nominal particle size that can pass through the screen.

Wedge wire screens are often used for coarse to medium filtration, backwashing, dewatering, and applications where mechanical strength and an open flow area are important. The smooth outer surface can help with cleaning in some designs.

The actual performance depends on slot width, wire profile, support structure, flow direction, and the way the element is mounted. A wedge wire screen is not interchangeable with a woven mesh or sintered element simply because both are made from stainless steel.

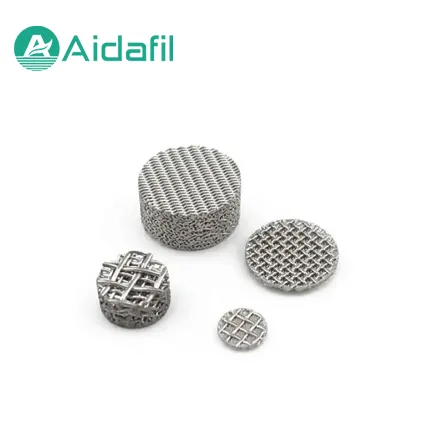

How Sintered Mesh Filters Are Constructed

Sintered mesh filters are made by bonding one or more layers of metal mesh or metal fiber. The sintering process creates a fixed porous structure with a controlled pore size and improved mechanical stability compared with a loose woven mesh.

Sintered filters can be designed for finer particle retention and can provide a large filtration area in a compact element. The structure may include a protective layer, a filtration layer, and support layers. The exact construction should be confirmed from the product drawing.

Sintered metal media are used in high-temperature, high-pressure, viscous, or chemically demanding applications where a cleanable metal filter may be suitable. Cleaning and regeneration must be matched to the contaminant and the pore structure.

Comparison at a Glance

The table is qualitative. It cannot replace a pressure-drop calculation, particle-retention review, or compatibility check for a specific process.

Compare Particle Retention Requirements

Start with the smallest particle that must be retained and the acceptable pressure drop. A wedge wire screen is often considered when the required slot is relatively open and the main goal is to retain larger solids while maintaining flow. A sintered element may be considered when finer filtration is required and the process can accept the associated pressure drop and cleaning requirements.

Do not compare only the nominal micron number. Ask how the rating was determined and whether it is a nominal or absolute value. The shape of the particles and the flow direction can affect the result.

Evaluate Mechanical and Pressure Conditions

Both constructions can be strong, but the support structure matters. Check the differential pressure across the element, the maximum pressure, the temperature, and any vibration or mechanical load. A filter that is strong in one direction may not be suitable if the flow can reverse or if the element is cleaned by high-pressure backflow.

Confirm the housing support and the sealing arrangement. A metal element may be durable, but a damaged seal or unsupported end cap can still allow bypass.

Consider Cleaning and Maintenance

Wedge wire screens are often selected where the process allows backwashing or mechanical cleaning. The open slot structure can release some contaminants more easily than a fine porous medium, but the result depends on the contaminant and the cleaning procedure.

Sintered elements can be cleaned in suitable applications, but the cleaning method must not damage the bonded structure or leave contamination trapped in the pores. Verify the recommended cleaning agent, temperature, pressure, and drying procedure with the supplier.

If cleaning is difficult or the contaminant cannot be removed reliably, a disposable or replaceable element may be a better service choice. The lowest purchase price is not the lowest lifecycle cost if the element cannot be cleaned effectively.

Review the Process Fluid and Temperature

Check corrosion resistance, temperature range, and compatibility with the fluid. Stainless steel grades are not equally suitable for every chemical environment. If the process contains chlorides, aggressive additives, or high-temperature oxidation, confirm the material with the supplier.

Also consider gasket and seal materials. The metal filter may be suitable for a high-temperature process, while the seal is not. The complete assembly must be reviewed.

Common Applications to Discuss with a Supplier

Typical questions include:

· Is the filter used for water, oil, gas, solvent, polymer, or another fluid?

· Is the main requirement coarse screening or fine particle removal?

· What is the normal and maximum pressure drop?

· Will the element be backwashed, chemically cleaned, or replaced?

· What are the temperature and corrosion conditions?

· What connection, diameter, length, and sealing arrangement are required?

These details make the difference between a general material comparison and a usable filter specification.

Common Selection Mistakes

One mistake is assuming that a finer filter is always better. A finer element may increase pressure drop, shorten service life, or become difficult to clean. Another is selecting a metal filter because it is reusable without checking whether the contaminant can actually be removed.

Teams sometimes compare a wedge wire slot size with a sintered mesh micron rating as if the numbers had the same meaning. The test method and filtration mechanism may differ. Finally, ignoring the seal, support, and housing interface can lead to a filter that appears to fit but does not perform reliably.
