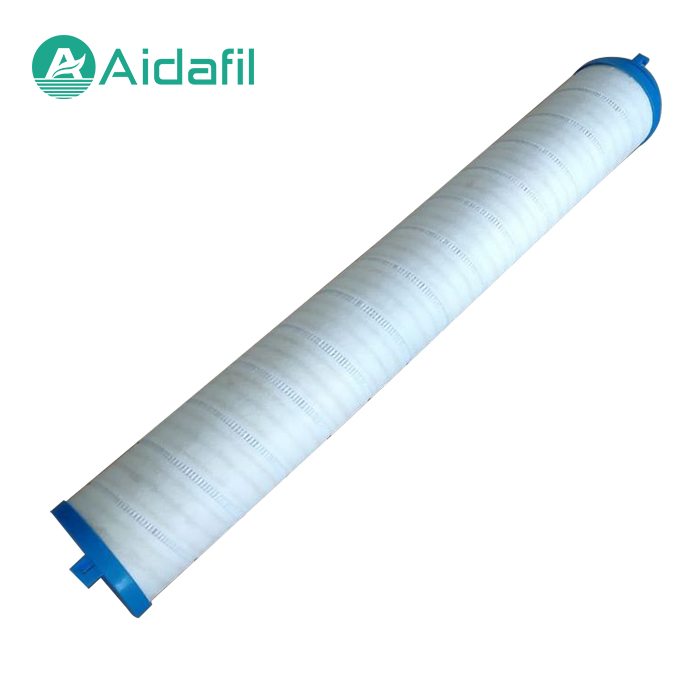

Factory Hydraulic Oil Filter UE319AP13H (Z)
Hydraulic Filter Elements replacement element
Hydraulic Filter Elements
FEATURES:1. We use imported depthype filter material,tapered pore structure,gradient filter,can intercept granule furthest, to extend the service life.2. We use hightech support materials.Hightech sup
Orders are confirmed by our team for price, compatibility and delivery.
Verified specifications for confident selection.
Confirm installation requirements against the equipment manual or original documentation.
| Category | Hydraulic Filter Elements |
|---|---|
| Equipment System | Hydraulic Systems |
| Filtration Rating | 1-100μm |
FEATURES:
1. We use imported depthype filter material,tapered pore structure,gradient filter,can intercept granule furthest, to extend the service life.
2. We use hightech support materials.Hightech support materials can not only play the role of support filter, material and avoiding compressive deformation,but also protect the materials from being damaged during processing.
3. We also use the special spiral wrapping belts,so thar filter layers can be connected firmly.Stationary pleated distance ensures the uniform flow when fluid penetrating the filter layer.Not only improving pressure drop,but also extending service life.
4. Factory Price, High Quality, High Efficiency and Long working Life.
5. Good temperature resistance and anti-humidity performance.
6. Economical, Environmental, Practical,and Easy to install.
7. Your inquiry will be replied in 24 hours.
TEST STANDARD:
Our filter elements are tested according to ISO 2943
Compatibility with hydraulic fluids ISO 3968
Flow characteristics ISO/DIS 3724
Flow fatigue characteristics ISO/DIS 4572
Filter performance test (Multi-pass test) ISO 2942
Proof of integrity and quality (Bubble point test) ISO 3723
Verification of the end cap stress ISO 2941
Collapse / burst pressure verification
Product parameters
1.The quality and performance can be guaranteed as original elements.
2.Temperature Range -4°F~212°F
3.Seals: nitrile seals, fluorocarbon seals for corrosive fluids.
4.Collapse pressure rating 21bar-210bar (Hydraulic Liquid Filtration)
5.Filtering precision 3, 5, 10,20 and 50 micron.
6.Filter Medium: glass fiber, filter paper, stainless steel sinter fiber and stainless wire mes
7.Fluid Compatibility Compatible with all petroleum oils,water glycols, oil/water emulsions, high water base fluids,and synthetic fluids compatible with Fluoro Rubber or EPR seals.
Installation Notes
Stop the system and release pressure before removal. Confirm flow direction and sealing surfaces before installation.
Maintenance & Replacement
Replace according to pressure drop or the maintenance schedule. Inspect for leakage and seal damage.
Before Ordering
Confirm medium, flow rate, pressure, temperature, connection and available installation space.
Delivery Options
Shipping or service point pickup. Our team confirms the best arrangement based on destination, weight and lead time.
Confirmed Before Dispatch
After inquiry, we verify specifications, price and supply status before delivery.
Ongoing Support
For specification, installation or quality questions, keep the product and order information available when contacting us.
