2116010126

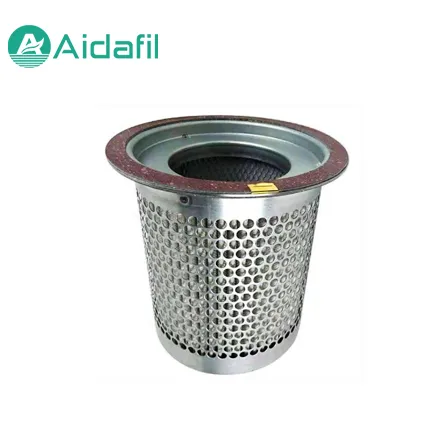

Air Compressor Filter Elements replacement element
Air Compressor Filter Elements
2116010126 oil separator element, coalescing type for ≥0.1μm oil mist, residual oil ≤3ppm, replacement spare part for screw air compressor.Part number 2116010126 is a dedicated Oil Fine Separator…
Supply TypeIndependent aftermarket replacement
AvailabilityAvailable
Lead Time2–3 business days
Cross ReferenceTo be confirmedNo cross reference has been added
Reference price · tax included
Request quotation
Orders are confirmed by our team for price, compatibility and delivery.
Flexible DeliveryService Point Pickup
Verified specifications for confident selection.
Confirm installation requirements against the equipment manual or original documentation.
| Filtration precision | ≥0.1μm |
|---|---|
| Outer diameter | 650 mm |
| height | 820 mm |
| work pressure | ≤1.0 MPa |
| Allowable operating temperature | ≤80℃ |
Dimensions are indicative, not an engineering drawing.
2116010126 oil separator element, coalescing type for ≥0.1μm oil mist, residual oil ≤3ppm, replacement spare part for screw air compressor.
Part number 2116010126 is a dedicated Oil Fine Separator screw air compressors.
This coalescing separator captures oil aerosols ≥0.1μm. Guaranteed residual oil carryover ≤3ppm.
Initial pressure differential ≤0.02MPa. It efficiently separates oil mist from compressed air.
This separator adopts flange mounting structure. During installation, inspect the matching gaskets for integrity. Evenly fasten the flange connection to avoid oil & air bypass leakage.
Regular replacement eliminates common faults such as high oil carryover and high differential pressure alarm, protecting your compressor host and extending service life.
Installation Notes
Check the gasket integrity before installation. Tighten flange evenly to prevent oil & air bypass leakage.
Maintenance & Replacement
Replace according to pressure drop or the maintenance schedule. Inspect for leakage and seal damage.
Before Ordering
Confirm medium, flow rate, pressure, temperature, connection and available installation space.
Delivery Options
Shipping or service point pickup. Our team confirms the best arrangement based on destination, weight and lead time.
Confirmed Before Dispatch
After inquiry, we verify specifications, price and supply status before delivery.
Ongoing Support
For specification, installation or quality questions, keep the product and order information available when contacting us.
INQUIRYSend an inquiry for this product
Send your requirements for 2116010126 and our selection team will confirm compatibility, price and lead time.
Frequently Asked Questions
How do I confirm compatibility without a third-party brand reference?
Provide the product number, dimensions, connection details, operating conditions and equipment information. Our team will confirm the application.
Which dimensions should I measure?
Measure the overall height, outer diameter, inner diameter and thread or connection size. A photo or drawing helps confirm the replacement.
How do I choose the correct seal material?
Seal selection depends on the filtration media, operating temperature and chemical compatibility. We can confirm suitable options for your application.
Can you provide a product data sheet?
Yes. Send the product number and required specifications and we will provide the available data sheet and selection support.
