High viscosity filtration for lubricating oil system
Oil Purifier Machine industrial filtration equipment

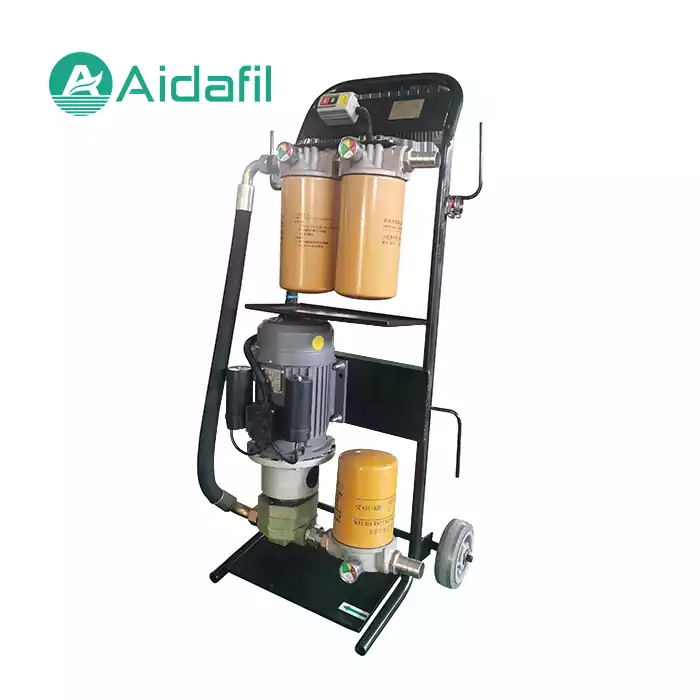

Oil Purifier Machine
Our pushcart filter not only can be used as hydraulic system tanker to ensure the cleanliness of oil, but also used as by-pass circulation filtering equipment of the hydralic system for rugular…
Product TypeIndustrial Filtration Equipment
ApplicationWater treatment and industrial process filtration
Lead TimeConfirmed after technical review
Reference price · tax included
Request quotation
Orders are confirmed by our team for price, compatibility and delivery.
Application SelectionTechnical Documentation
Operational data for system integration.
Final configuration is confirmed against flow rate, water quality and installation conditions.
| Category | Oil Purifier Machine |
|---|---|
| Equipment System | Oil, Water & Industrial Filtration |
| Filtration Rating | 1-100μm |
Our pushcart filter not only can be used as hydraulic system tanker to ensure the cleanliness of oil, but also used as by-pass circulation filtering equipment of the hydralic system for rugular cleanliness.
It can be maintain the pollution of hydralic system, keep the system work properly,and prolong the service life.
High viscosity oil filter GLYC technical parameters
| Part number | GLYC-25-* | GLYC-40-* | GLYC-80-* |
| Rated flowL/min | 25 | 40 | 80 |
| Rated pressure MPa | 1.0 | ||
| Original pressure loss Mpa | ≤0.2 | ||
| Accuracy μm | 3、5、10、20、40 | ||
| Motor power kw | 2.2 | 3 | 4 |
| Voltage V | AC 380V three-phase | ||
| Weight kg | 220 | 280 | 400 |
| Dimensions mm | 1080X600X980 | 1200X600X980 | 1500X740X1020 |
Note:
* mean accuracy of the two stage fine filter, such as 003 is 3 microns
* mean applicable medium，Range: 1.0~3000,000cSt
Typical Applications
Water treatment, cooling water, circulating water and industrial process filtration.
Selection Information
Provide flow rate, water quality, filtration rating, pressure, connection size and installation environment.
Customization
Housing material, screen rating, connection, control method and system configuration can be customized.
Installation Notes
Confirm flow direction, connection size, installation space and system pressure before installation.
Maintenance & Replacement
Inspect the screen, seals, valves and cleaning system according to the operating conditions and maintenance schedule.
Before Ordering
Confirm medium, flow rate, pressure, temperature, connection and available installation space.
Delivery Options
Shipping or service point pickup. Our team confirms the best arrangement based on destination, weight and lead time.
Confirmed Before Dispatch
After inquiry, we verify specifications, price and supply status before delivery.
Ongoing Support
For specification, installation or quality questions, keep the product and order information available when contacting us.
