ZS1063829

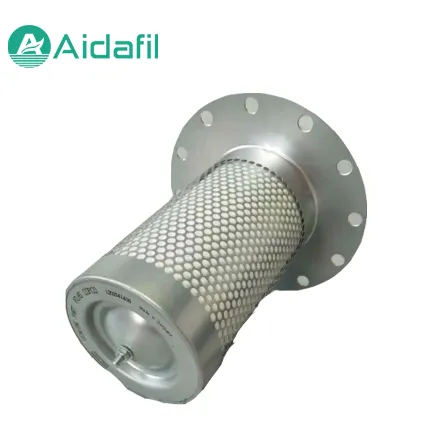

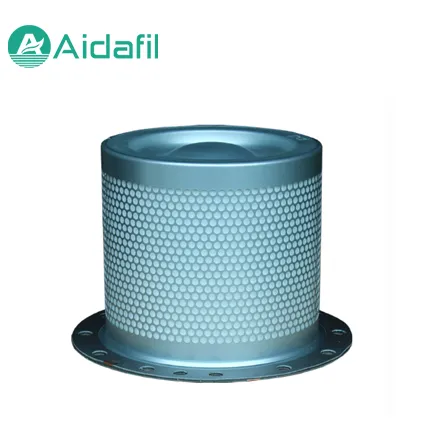

Air Compressor Filter Elements replacement element
Air Compressor Filter Elements
ZS1063829 is the official part number for the Air/Oil Separator core used on screw air compressors.Core Functions and RolesBefore compressed air leaves the air compressor, the oil-gas separator is…
Supply TypeIndependent aftermarket replacement
AvailabilityAvailable
Lead Time2–3 business days
Cross ReferenceTo be confirmedNo cross reference has been added
Reference price · tax included
Request quotation
Orders are confirmed by our team for price, compatibility and delivery.
Flexible DeliveryService Point Pickup
Verified specifications for confident selection.
Confirm installation requirements against the equipment manual or original documentation.
| Height | 305 mm |
|---|---|
| Weight | 4.15 Kg |
| Largest Inner Diameter | 157 mm |
| Outer Diameter | 220 mm |
| Largest Outer Diameter | 272 mm |
Dimensions are indicative, not an engineering drawing.
ZS1063829 is the official part number for the Air/Oil Separator core used on screw air compressors.
Core Functions and Roles
Before compressed air leaves the air compressor, the oil-gas separator is mainly responsible for removing mist-like lubricating oil and oil droplets entrained in the air. It intercepts oil components through centrifugal and filtration mechanisms and returns them to the main lubrication system. In this way, it supplies clean compressed air to the downstream equipment and prevents the loss of compressor lubricating oil.
Filter medium material: Imported high-quality Borosilicate Micro Glass Fibre, multi-layer composite formed by special equipment, featuring extremely high porosity as well as high temperature resistance and chemical corrosion resistance.
• Seals: Equipped with 2 high-performance VITON O-rings (some highly compatible alternatives adopt Buna-N), offering excellent oil resistance and high-temperature sealing performance.
Installation Notes
Stop the system and release pressure before removal. Confirm flow direction and sealing surfaces before installation.
Maintenance & Replacement
1.Check the conductive sheet: When installing a new filter element, make sure the staple-shaped conductive strip or copper sheet on the flange is intact and in good contact with the metal surface of the unit. 2. Clean the oil return pipe: Every time the separator is replaced, the oil return pipe must be cleaned at the same time, and check whether the oil return check valve is unobstructed. 3. Replace the three filters at the same time: When replacing the separator, it is recommended to replace the air filter and oil filter at the same time to prevent the new separator from being blocked quickly due to poor-quality air filters
Before Ordering
Confirm medium, flow rate, pressure, temperature, connection and available installation space.
Delivery Options
Shipping or service point pickup. Our team confirms the best arrangement based on destination, weight and lead time.
Confirmed Before Dispatch
After inquiry, we verify specifications, price and supply status before delivery.
Ongoing Support
For specification, installation or quality questions, keep the product and order information available when contacting us.
INQUIRYSend an inquiry for this product
Send your requirements for ZS1063829 and our selection team will confirm compatibility, price and lead time.
Frequently Asked Questions
How do I confirm compatibility without a third-party brand reference?
Provide the product number, dimensions, connection details, operating conditions and equipment information. Our team will confirm the application.
Which dimensions should I measure?
Measure the overall height, outer diameter, inner diameter and thread or connection size. A photo or drawing helps confirm the replacement.
How do I choose the correct seal material?
Seal selection depends on the filtration media, operating temperature and chemical compatibility. We can confirm suitable options for your application.
Can you provide a product data sheet?
Yes. Send the product number and required specifications and we will provide the available data sheet and selection support.
