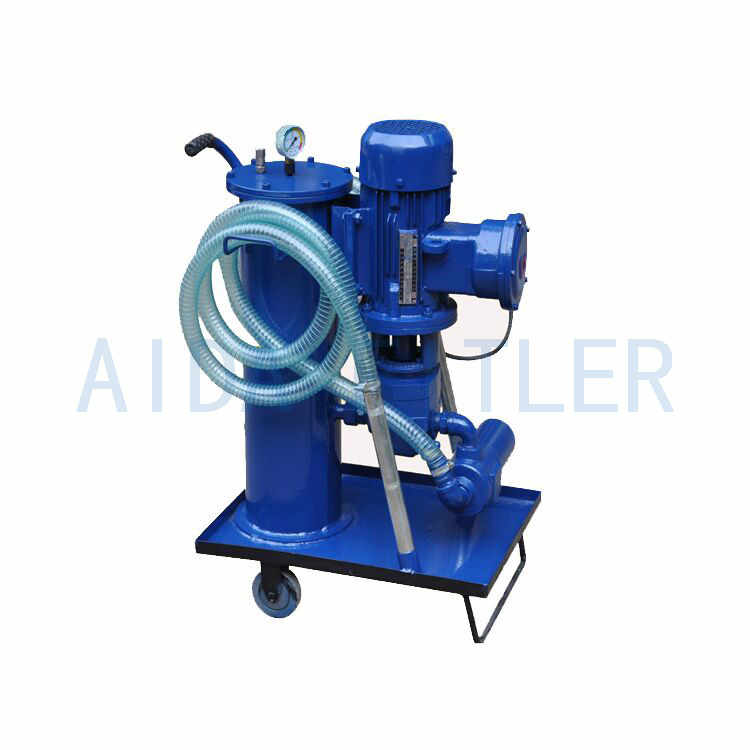

Explosion proof hydraulic oil purification used oil filtration equipment
Explosion proof hydraulic oil purification used oil filtration equipment

Explosion proof hydraulic oil purification used oil filtration equipment

Model:FLYC-C

Precision:

Get QuotationSend E-mail
Product Details
Product Description

This filters are filled up the hudraulic lublication equipment with oil and purify oil whenever it  needs which is easy to operate and convenient to carry.

The coarse suction filter can not only protect oil pump but also prolong the life of mail filter.

According to different requirements,the filter precision can be selected to reach different oil rate.


FLYC series blast-proof movable box type oil purifier technical parameters

Part number FLYC-32C-*/* FLYC-50C-*/** FLYC-63C-*/** FLYC-100C-*/**
Rated flow L/min 32 50 63 100
Rated pressure Mpa 0.6
Original pressure loss Mpa ≤0.02
Coarse filter accuracy μm 100
Primary filtration accuracy μm 10、20、40
Secondary filtration accuracy μm 3、5、10
Motor power Kw 0.75 1.1 1.1 2.2
Voltage   V AC 380V three-phase
Weight  Kg 90 100 118 160
Dimensions  mm 950×560×900 950×560×900 950×560×900 1000×600×1130

Note:
* mean accuracy of the two stage fine filter, such as 003 is 3 microns
* * mean applicable medium, omitted: general hydraulic oil
BH: Ethylene glycol
V: phosphate ester hydraulic fluid
* * * Applicable medium viscosity ≤160cSt
