SS multilayered air filtration perforated metal sintered wire mesh
Metal Sintered Mesh Filter replacement element
Metal Sintered Mesh Filter
stainless steel multilayered air filtration perforated metal sintered wire mesh
Supply TypeIndependent aftermarket replacement
AvailabilityAvailable
Lead Time2–3 business days
Reference price · tax included
Request quotation
Orders are confirmed by our team for price, compatibility and delivery.
Flexible DeliveryService Point Pickup
Verified specifications for confident selection.
Confirm installation requirements against the equipment manual or original documentation.
| Category | Metal Sintered Mesh Filter |
|---|---|
| Equipment System | Sintered Filter Systems |
| Filtration Rating | 1-100um |
Dimensions are indicative, not an engineering drawing.

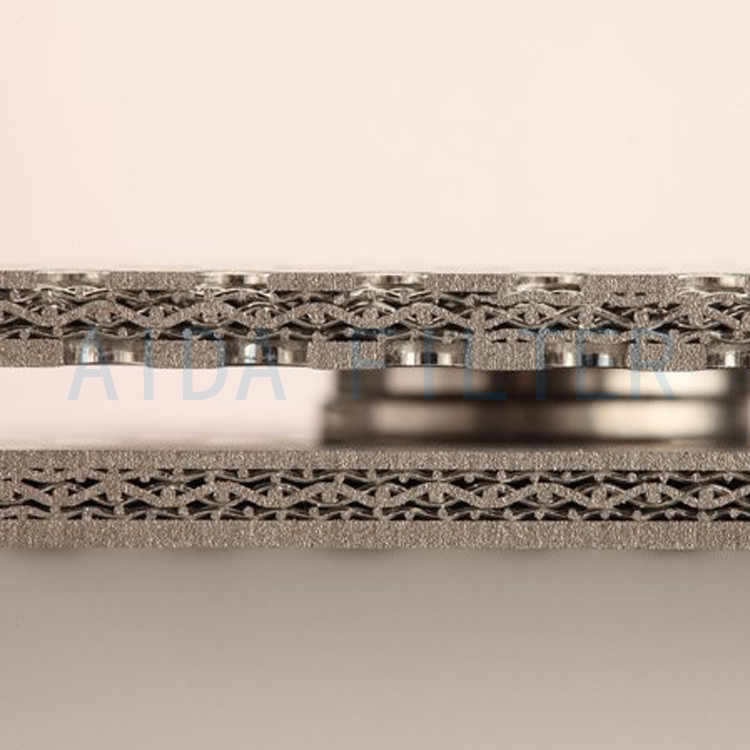

Perforated sheet wire mesh laminate
It is a new filter material, which is made of stainless steel perforated plate and several layers of wire mesh by sintering together and of which layer and number mesh and number are decided by the working condition and using application.
Characteristics:
1.Wide range of filter rating;
2.Steady filter rating;
3.HIgh mechanical strength;
4.Easy to wash;
5.Heat resistance;
6.Corrosion resistance;
7.Tractability
Material:
AISI316L,or produce according to customer's demand.
Size:
The standard sizes are 500*1000mm and 600*1200mm.Besides,other sizes within the above sizes are available according to your requirement.
Application: Water treatment, beverage, food and pharmaceutical industry, metallurgy and chemical industry.
Stainless Steel Sintered Non-woven fiber felt
sintered metal fiber felt is composed of steel fible mesh sintering together, then it still have feature of web and porous construction .high strength, high stable construction, these advantages, make it deal material of heat-resistant, corrosion-resistant and high precision. These reusable, high quality filters are ideal for filtration and gas filter application.
1. material :standard material: 316L, 316,304, pure nickel .
2. max apply size: 1200X1000mm ,special size are available on request.
3. process: can be processed to disc shape ,candle shape wave shape etc.
4. spec.:5---40um(c)
5. thickness : 0.3—0.68mm
Main application:
1.polyester melt purification in chemical fiber and membrane industry.
2.high temperature filtration and corrosion and liquid filtration in petroleum industry.
3.hydraulic fuel and lubrication oil filtration in mechanical equipment.
4.iquid purification in pharmaceutical, biological and beverage industry
Advantages:
1 .high dirt holding capacity ,high filtering accuracy, longer on stream lift.
2.corrosion resistance of nitric acid, alkali and organic solvent proof
.it can be used for a long period of service in the temperature of 600°C.
3.high porosity and excellent permeability which results in low pressure drop and large, flow.
4.pleatable ,provide a large filter area, and can be welded and, machined.
5. cleanable ,can be for used many times
product technical criteria and deviation:
| specification um(c) | filter rating um(c) | bubble point pressure (pa) | Air permeability L/(min.dm 2 ) | porosity (%) | dirt holding capacity (mg/cm 2 ) | thickness (mm) | breaking tenacity (MPa) | ||||||
| basic | deviation | basic | deviation | basic | deviation | basic | deviation | basic | deviation | basic | deviation | ||
| 5 | 4.0~6.0 | 6800 | ±10% | 47 | ±20% | 75 | ±10% | 2.5 | ±20% | 0.30 | ±10% | 32 | ±20% |
| 7 | >6.0~8.0 | 5200 | 63 | 76 | 3.8 | 0.30 | 36 | ||||||
| 10 | >8.0-13.0 | 3700 | 105 | 75 | 4.0 | 0.37 | 32 | ||||||
| 15 | >13.0-18.0 | 2450 | 205 | 79 | 6.8 | 0.40 | 23 | ||||||
| 20 | >18.0-23.0 | 1900 | 280 | 80 | 11.5 | 0.48 | 23 | ||||||
| 25 | >23.00-28.0 | 1550 | 355 | 80 | 18.0 | 0.62 | 20 | ||||||
| 30 | >28.0-35.0 | 1200 | 520 | 80 | 22.0 | 0.63 | 23 | ||||||
| 40 | >35.0-45.0 | 950 | 670 | 78 | 32.0 | 0.68 | 26 | ||||||
Installation Notes
Stop the system and release pressure before removal. Confirm flow direction and sealing surfaces before installation.
Maintenance & Replacement
Replace according to pressure drop or the maintenance schedule. Inspect for leakage and seal damage.
Before Ordering
Confirm medium, flow rate, pressure, temperature, connection and available installation space.
Delivery Options
Shipping or service point pickup. Our team confirms the best arrangement based on destination, weight and lead time.
Confirmed Before Dispatch
After inquiry, we verify specifications, price and supply status before delivery.
Ongoing Support
For specification, installation or quality questions, keep the product and order information available when contacting us.
INQUIRYSend an inquiry for this product
Send your requirements for Customizable and our selection team will confirm compatibility, price and lead time.
Frequently Asked Questions
How do I confirm compatibility without a third-party brand reference?
Provide the product number, dimensions, connection details, operating conditions and equipment information. Our team will confirm the application.
Which dimensions should I measure?
Measure the overall height, outer diameter, inner diameter and thread or connection size. A photo or drawing helps confirm the replacement.
How do I choose the correct seal material?
Seal selection depends on the filtration media, operating temperature and chemical compatibility. We can confirm suitable options for your application.
Can you provide a product data sheet?
Yes. Send the product number and required specifications and we will provide the available data sheet and selection support.
