Reliable filtration starts with verified specifications.

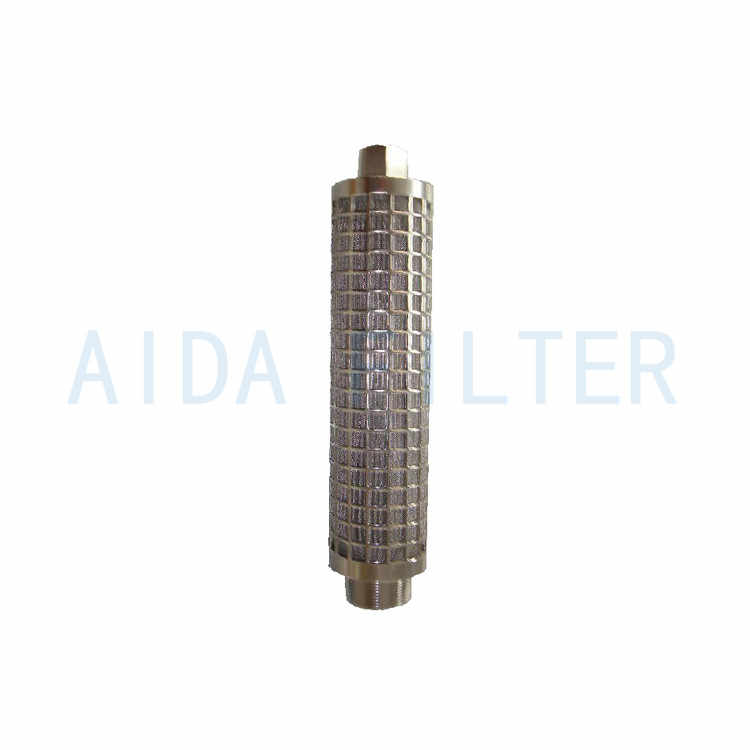

Stainless Steel 304 metal folding filter with high performance
Metal Sintered Mesh Filter replacement element
Metal Sintered Mesh Filter
The stainless steel folding filter is mainly made of stainless steel woven mesh, which is woven from stainless steel wire of different diameters. The made filter element has good strength, not easy to fall off, easy to clean, and resistant to high…
Orders are confirmed by our team for price, compatibility and delivery.
Verified specifications for confident selection.
Confirm installation requirements against the equipment manual or original documentation.
| Category | Metal Sintered Mesh Filter |
|---|---|
| Equipment System | Sintered Filter Systems |
| Filtration Rating | 1-100um |
Main characteristics:
1. After wavy, the area increases several times, the ability to absorb pollution is stronger, and the replacement period is longer.
2. High porosity, strong permeability, low pressure difference, suitable for high viscosity medium filtration.
3. Excellent strength, high temperature resistance, corrosion resistance.
4. Good regeneration, chemical cleaning, high temperature calcination and ultrasonic cleaning after repeated use.
Main uses:
1. Filtration of polymer melts in polyester, filament, staple and film production.
2. high temperature gas, steam filtration.
3. Filtration of high temperature liquids or viscous liquids.
Typical application parameters:
1. working pressure: 30MPa
2. Working temperature: 300 ℃
3. Fluid viscosity: 260Pa.s
4. Capacity: 16.9% 41 mg / c
Installation Notes
Stop the system and release pressure before removal. Confirm flow direction and sealing surfaces before installation.
Maintenance & Replacement
Replace according to pressure drop or the maintenance schedule. Inspect for leakage and seal damage.
Before Ordering
Confirm medium, flow rate, pressure, temperature, connection and available installation space.
Delivery Options
Shipping or service point pickup. Our team confirms the best arrangement based on destination, weight and lead time.
Confirmed Before Dispatch
After inquiry, we verify specifications, price and supply status before delivery.
Ongoing Support
For specification, installation or quality questions, keep the product and order information available when contacting us.
