AIDA PTFE sintered plate
Air Filter replacement element
Air Filter
PTFE sintered plate is an environmental friendly filter material. PTFE sintered plate filter element has a rigid wavy porous structure and is made of a variety of polymer powder.PTFE sintered plate is
Orders are confirmed by our team for price, compatibility and delivery.
Verified specifications for confident selection.
Confirm installation requirements against the equipment manual or original documentation.
| Category | Air Filter |
|---|---|
| Equipment System | Air & Gas Systems |
| Filtration Rating | 1-100um |
PTFE sintered plate is an environmental friendly filter material. PTFE sintered plate filter element has a rigid wavy porous structure and is made of a variety of polymer powder.

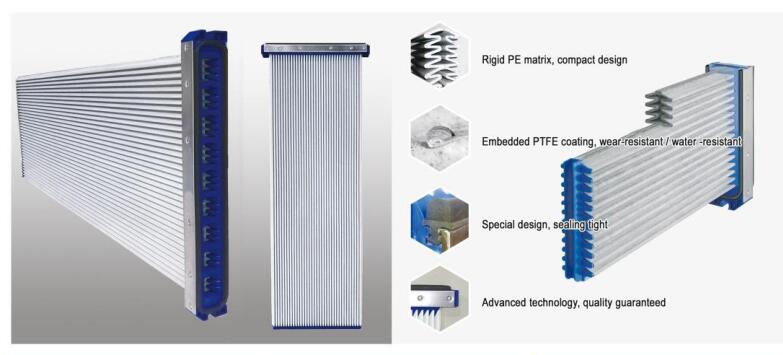

PTFE sintered plate is the most important filter element in PTFE sintered plate dust catcher, which implements the task of gas solid separation. The matrix of PTFE sintered plate is made of special polymer composite materials, which are screened for compatibility and paired, and then sintered in a special high-temperature furnace, the fine particle dust is intercepted on its surface to achieve the effect of dust removal and filtration. At the same time, the surface layer of the PTFE sintered plate is covered with a reinforced PTFE resin film. This resin film has a strong self cleaning function, which can effectively prevent the dust from sticking during work, and can use the gas recoil technology to automatically clean the dust. Still maintaining a solid windage loss.The structural shape of PTFE sintered plate is generally rectangular, and the filtering part is a wave shaped plate structure. The wave-shaped design is to increase its effective area for dust removal and filtration.

PTFE SINTERED PLATE FILTRATION APPLICATION
The air purification of dust removal equipment can be applied to industries such as cement,mining, metallurgy, chemical industry, automobile, electronics, medicine, food, welding processing precious metal recovery and so on.Because PTFE sintered plate filter element has the advantages of large surface area, small volume, high efficiency, convenient maintenance, it can filter dust with high moisture absorption and moisture content, and filter oily and fiber dust.It is suitable for use in the operation where the gas contains water and oil, and it is also incomparable to the electrostatic precipitator and the bag filter.
PERFORMANCE CHARACTERISTICS
HIGH FILTRATION ACCURACY Micron flter aperture can efectively capture 0.1μdust above 10 um above, the capture eficiency is as high as 99999%;
BETTERAPERMEABILITY Due to the adoption of more advanced sintering process and improved raw material formula, the PTFE sintered plate is ensured, the micropores in the matrix are more uniform, the penetration is better, and the air permeability is better. better,
LARGE FILTER AREA The flter surface is wave- shaped design, the filter area of a single board (HY-SSB-001) can reach 7 square meters,and the filter area in the same volume is 2~ 3times that of the filter bag;
HIGH DUST CAPTURE EFFICIENCY High filtration precision, high dust capture eficiency, low dust concentration in the exhaust,and discharge less than 10mg/Nm3;
STRONG SELF-CLEANING ABILITY The rigid structure makes the backflushing gas act on the powder attached to the filter surface more directly, without the buffering, the backflushing effect is better; a new generation of reinforced PTFE coating is also adopted, the surface of the PTFE sintered plate is denser and smoother, and the filtration precision is higher, and at the same time, the dust cleaning performance is significantly improved;
STABLE PRESSURE LOSS Super strong self-cleaning ability ensures that the filtration pressure loss is small and more stable;
STRONG ACID AND ALKALI RESISTANCE Special polymer composite material, can withstand long- term high temperature corrosion of strong acid and strong alkal;
EXCELLENT MOISTURE AND OIL RESISTANCE PTFE sintered plate The base material itsef has excellent moisture and oil resistance,and it is covered with reinforced PTFE coating, which not only has high moisture resistance and oil resistance, Moreover, the acid-containing water vapor can be collected into a water flow and removed;
EXCELLENT MECHANICAL PROPERTIES High strength and toughness, can withstand repeated impact of high pressure gas thousands of times a day;
SUPER LONG SERVICE LIFE Excellent mechanical properties, super acid and alkali resistance, perfect self dust cleaning effect, after reaching the normal service life, it can still achieve the same filtering effect as the new filter plate through the regeneration of the worn coating.
Installation Notes
Stop the system and release pressure before removal. Confirm flow direction and sealing surfaces before installation.
Maintenance & Replacement
Replace according to pressure drop or the maintenance schedule. Inspect for leakage and seal damage.
Before Ordering
Confirm medium, flow rate, pressure, temperature, connection and available installation space.
Delivery Options
Shipping or service point pickup. Our team confirms the best arrangement based on destination, weight and lead time.
Confirmed Before Dispatch
After inquiry, we verify specifications, price and supply status before delivery.
Ongoing Support
For specification, installation or quality questions, keep the product and order information available when contacting us.
